Back to engine platforms170 cc Two-Stroke
Motorcycles / Enduro & off-road
170 cc Two-Stroke
Motorcycle Engine
Single-cylinder, air-cooled power for enduro and off-road motorcycle applications.
Displacement170 cm³
Maximum power13 kW / 17.7 hp@ 7,000 rpm
Maximum torque19 Nm@ 5,500 rpm
Estimated dry weight15 kg

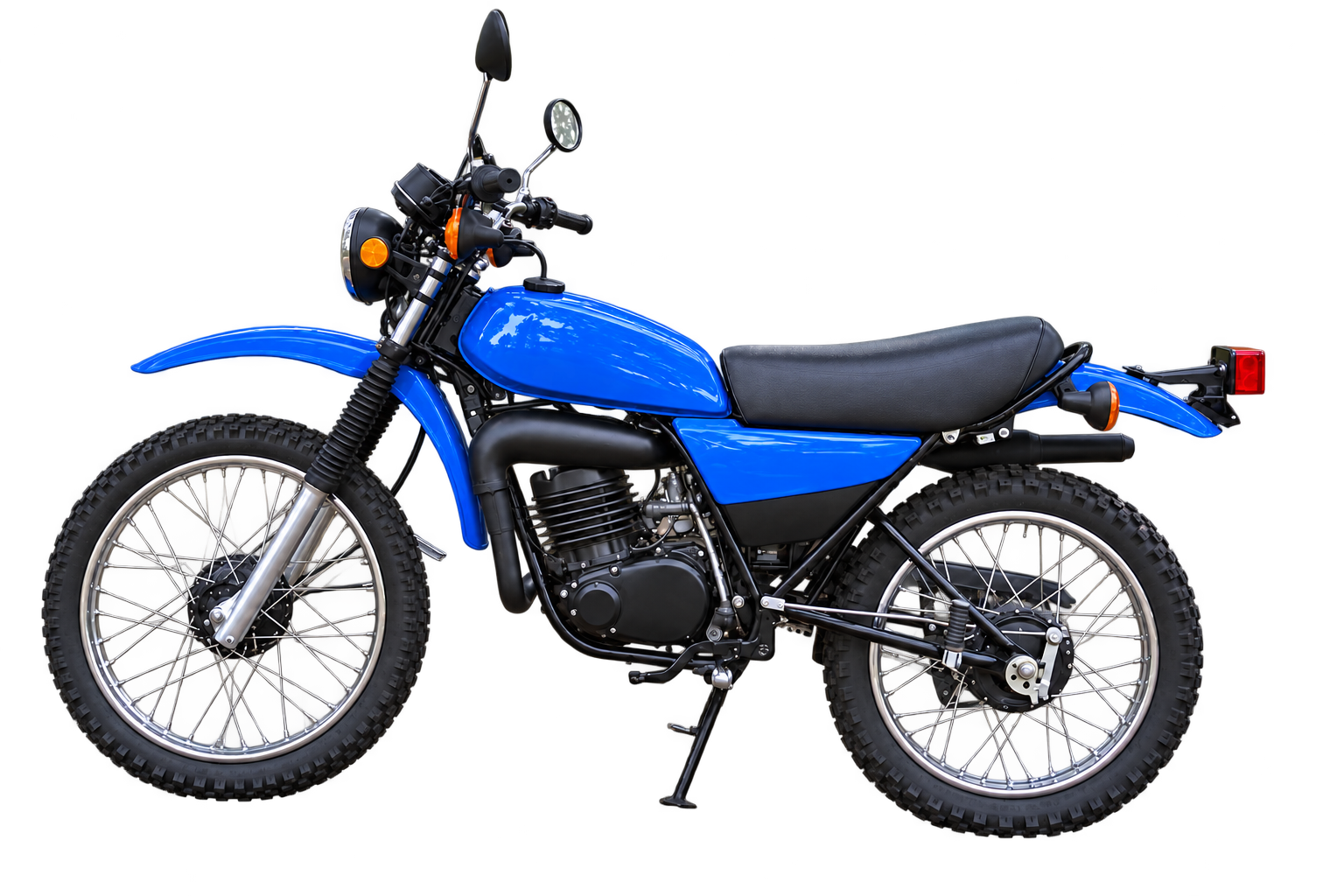

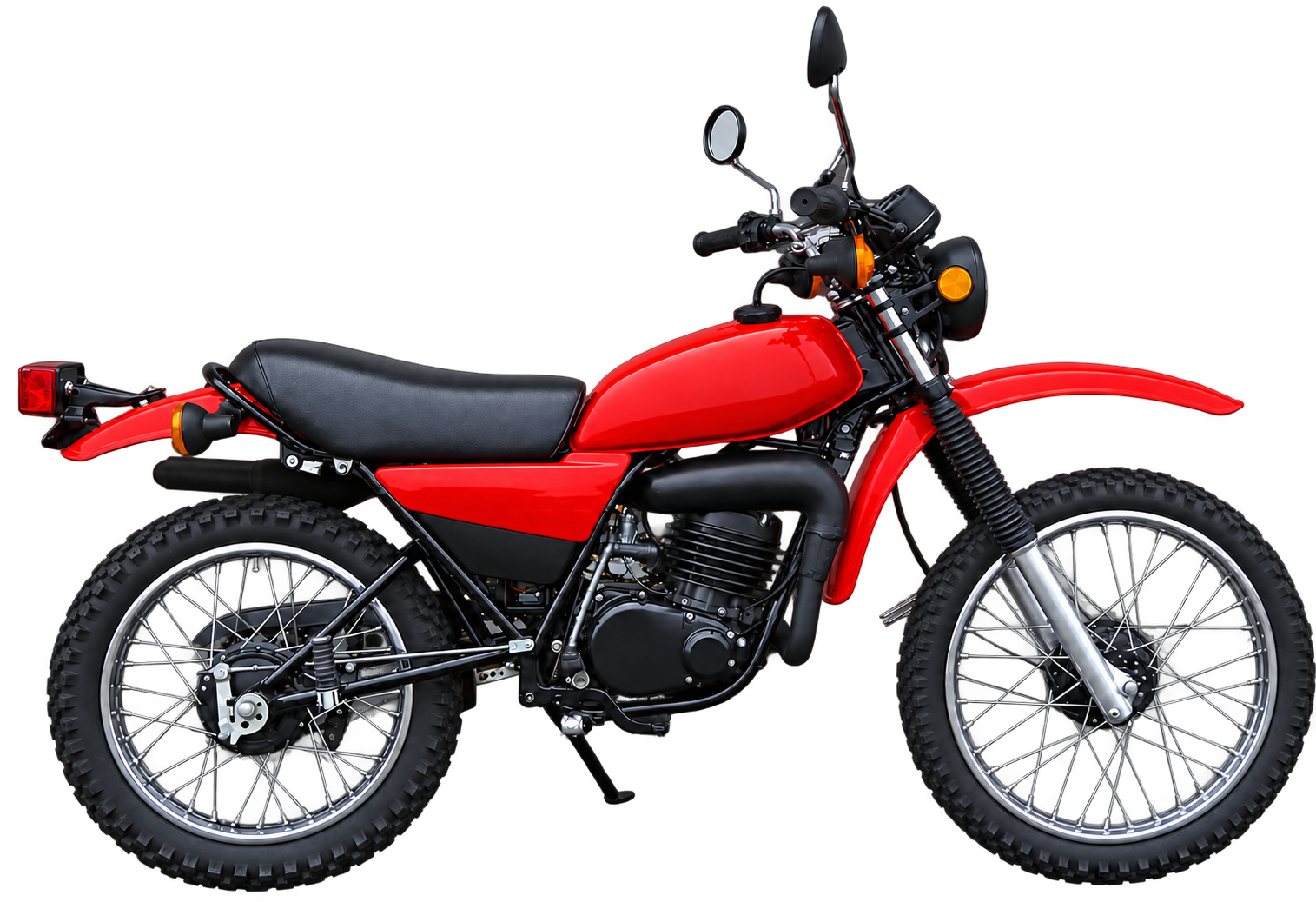

Motorcycles shown illustrate the application category. Engine specifications below refer to the 170 cc engine.
Engine data
Technical specifications
| Engine type | Single-cylinder, 2-stroke |
|---|---|
| Displacement | 170 cm³ |
| Bore diameter | 66.0 mm |
| Stroke | 50.0 mm |
| Maximum power | 13 kW (17.7 hp) @ 7,000 rpm |
| Maximum torque | 19 Nm @ 5,500 rpm |
| Maximum engine speed | 8,000 rpm |
| Cooling system | Air-cooled |
| Fuel system | Carburetor |
| Carburetor diameter | 28 mm |
| Ignition system | Electronic CDI |
| Starting system | Kick starter |
| Fuel | Unleaded gasoline, 95 RON |
| Fuel/oil ratio | 50:1 |
| Cylinder material | Aluminum alloy |
| Estimated dry engine weight | 15 kg |
| Application | Enduro / off-road motorcycle |
